SPACE PV of III-V multi-junction,Silicon /Perovskite PST and 全鈣鈦礦Super Tandem Thin Film.

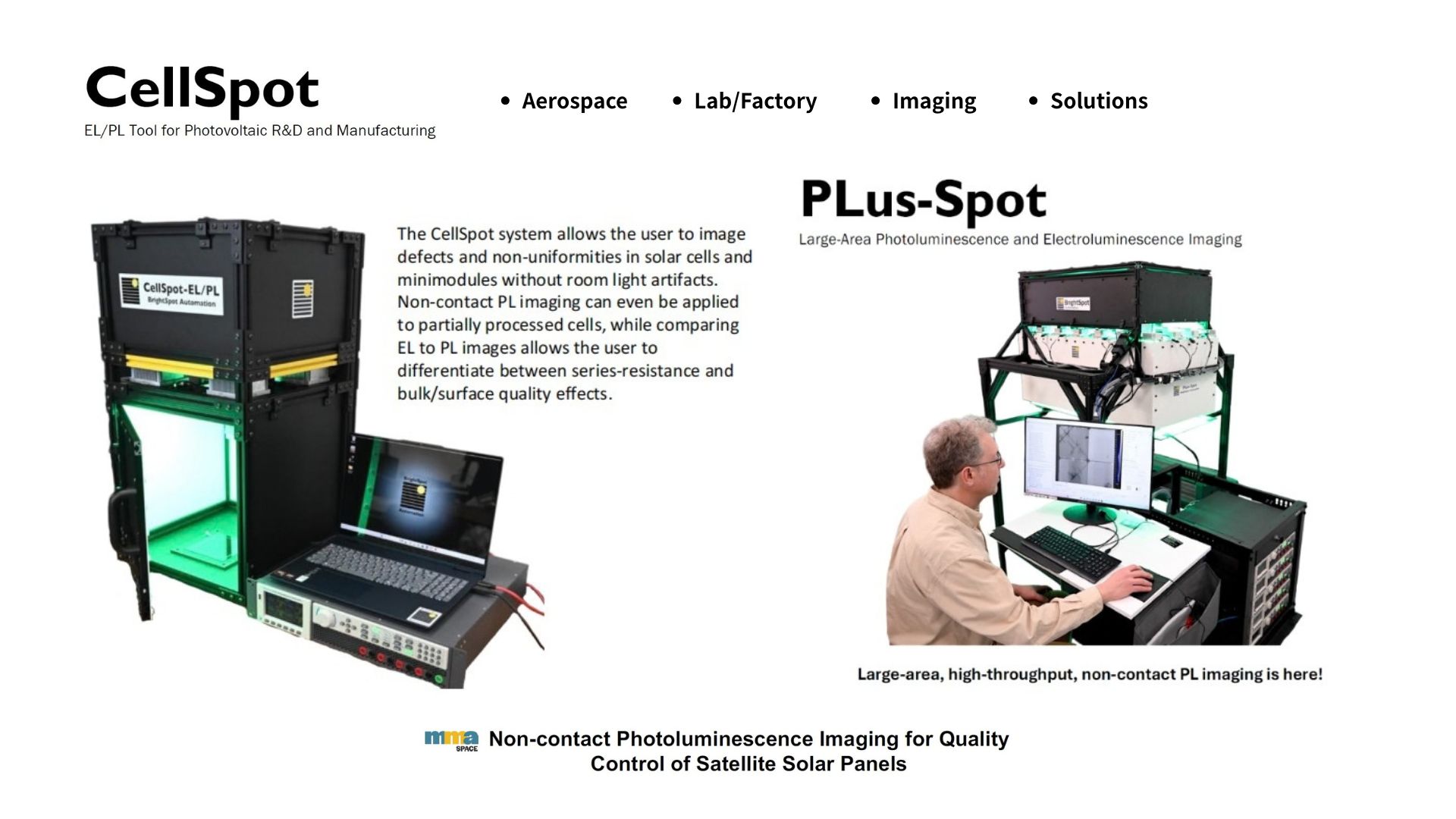

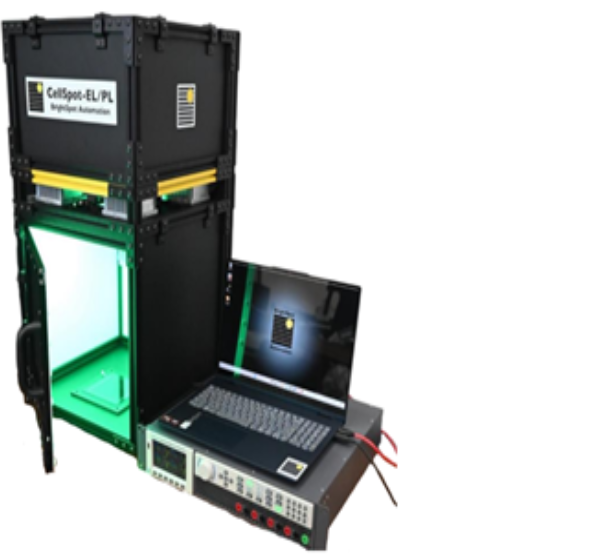

CellSpot

EL/PL Tool for photovoltaic R&D and Manufacturing

The CellSpot system allows the user to image defects and non-uniformities in solar cells and minimodules without room light artifacts. Non-contact PL imaging can even be applied to partially processed cells, while comparing EL to PL images allows the user to differentiate between series-resistance and bulk/surface quality effects.

Aerospace

Lab/Factory

Imaging

Solutions

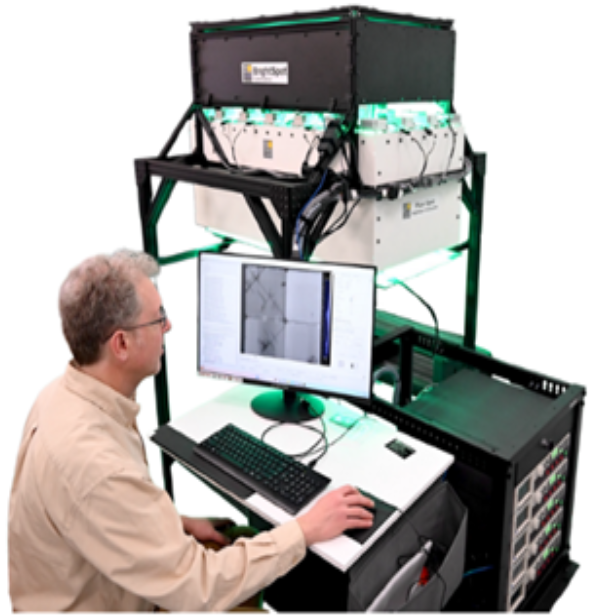

Plus-Spot

Large-Area Photoluminescence and Electroluminescence Imaging

Large-area, high-throughput, non-contact PL imaging is here!

精細調控4通道電源，4-8組R/G/B或NIR LEDs光源 各種波段濾波成像進行定量映射分析

• EL Imaging / PL Imaging Spot spectral
• Biased PL Imaging / EL biasing
• Dark IV Testing
• Monochromatic or Bichromatic Light IV Testing

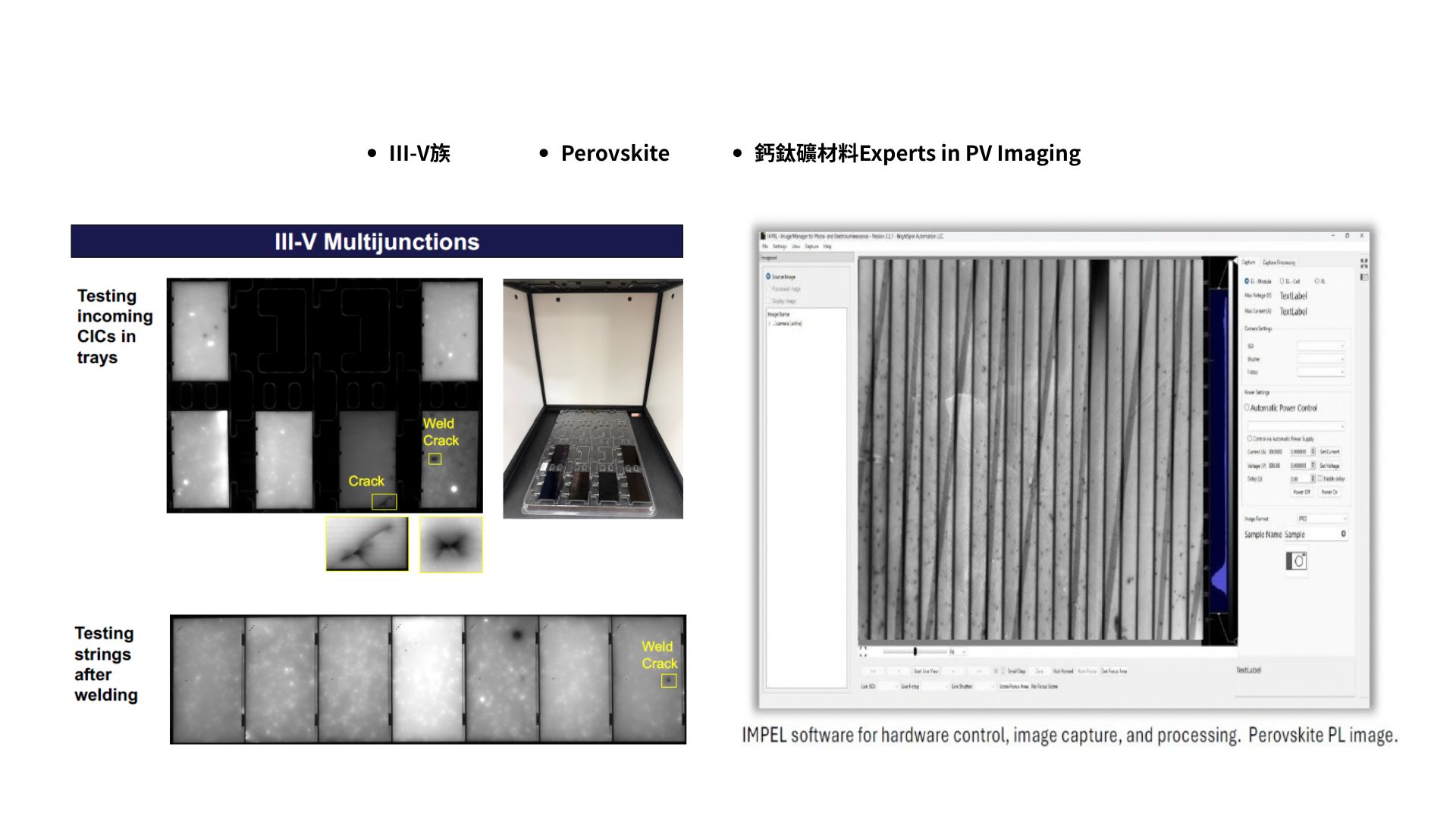

IMPEL獨特操作軟體結合原始成像資料及 Sinking power Supply 功能提取光強/偏置相關PL信號中的理想二極體因數,串阻，Implied Voc和轉換效率。

• IMPEL software on a Windows
  laptop for power supply control, image acquisition, background noise subtraction, fisheye correction, vignette correction, contrast improvement, autocropping, colorization, and recipe and log saving
